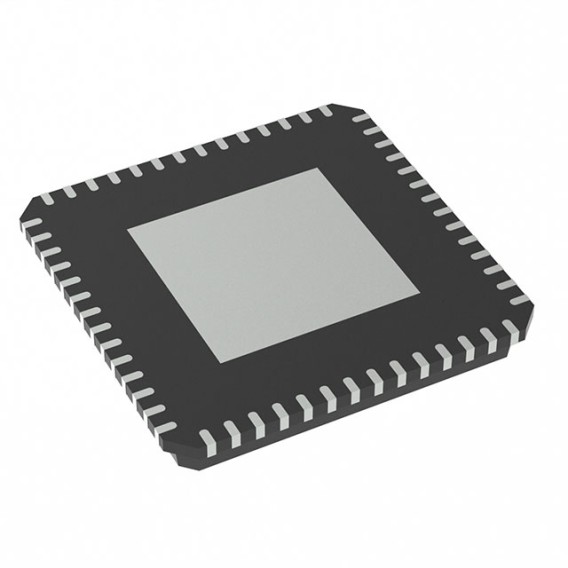

88E1512PB2-NNP2I000
| Parameters | |
|---|---|
| Mfr | Marvell Semiconductor, Inc. |
| Series | Marvell® Alaska® 88E1512 Family |
| Package | 56-QFN |
| Mounting Type | Surface Mount |
| Data Rate | 10 Mbps, 100 Mbps, 1 Gbps |
| Host Interface Standard | RGMII, SGMII |
| Supply Voltage | 3.3 V (Nominal) |
| Operating Temperature Range | -40°C to +85°C |
88E1512PB2-NNP2I000 Gigabit Ethernet PHY transceiver
The 88E1512PB2-NNP2I000 is an industrial-grade, dual-port Gigabit Ethernet PHY transceiver from Marvell's Alaska family, designed for robust networking in harsh environments. Packaged in a compact 56-QFN (8mm x 8mm), it fully complies with IEEE 802.3 standards for 10/100/1000BASE-T operation over standard CAT5e UTP cables. The chip integrates two independent PHYs, each supporting flexible RGMII and SGMII interfaces for seamless connection to MACs, Switches, or SFP modules (1000BASE-X). It operates from a single 3.3V supply (with an internal switching regulator) and features 1.8V/2.5V/3.3V LVCMOS I/O tolerance. Key for industrial use, it supports IEEE 1588v2 PTP (Precision Time Protocol) and SyncE (Synchronous Ethernet) for precise timing synchronization, along with an integrated Virtual Cable Tester (VCT) for remote fault diagnosis. Rated for the -40°C to +85°C industrial temperature range, it is ideal for rugged embedded and automation systems.
88E1512PB2-NNP2I000 Applications
● Industrial Ethernet Switches: Ruggedized switches and gateways for factory automation, process control, and PLC systems requiring -40°C operation.
● Embedded Networking Modules: IoT gateways, network cameras (IPNC), and edge computing devices needing dual Gigabit ports with small footprint.
● Automotive & Railway Networking: In-vehicle infotainment (IVI), telematics, and train communication networks where wide temperature tolerance is mandatory.
● Communications Infrastructure: Base stations, routers, and access points leveraging SGMII to SFP cages for fiber uplinks.
● Energy & Utility Systems: Smart grid communication equipment and substation automation requiring precise timing via PTP.
Alternative Ethernet PHY Models
1. 88E1510P-A0-NNP2I000 (Marvell): A industrial dual-port Gigabit PHY with a 48-pin QFN package, offering a smaller footprint for space-constrained designs.
2. BCM54280IB (Broadcom): A highly integrated dual-port industrial Gigabit PHY with SerDes interface, often used as a second-source alternative in high-volume networking gear.
3. DP83867IRPAPR (Texas Instruments): A robust single-port industrial Gigabit PHY known for exceptional EMI/EMC performance, suitable where dual separate ICs are acceptable.
4. VSC8552XMV-02 (Microchip): A dual-port Gigabit PHY with advanced security features and industrial temperature support, competing directly in the industrial switch market.
