TPS82130SILR
| Parameters | |
|---|---|
| Type | Synchronous Step-Down (Buck) Converter Module |
| Mfr | Texas Instruments |
| Package / Case | 8-LDFN |
| Mounting Type | Surface Mount |
| Input Voltage (VAC) | 3 V to 17 V |
| Output Voltage Range | 0.9 V to 6 V |
| Output Current | 3 A (Continuous) |
| Switching Frequency | 2.0 MHz (Typical) |
| Quiescent Current | 20 µA (Typical) |
| Architecture | DCS-Control™ |
| Output Voltage Accuracy | ±1.5% |
| Operating Temperature Range | -40°C to +125°C |

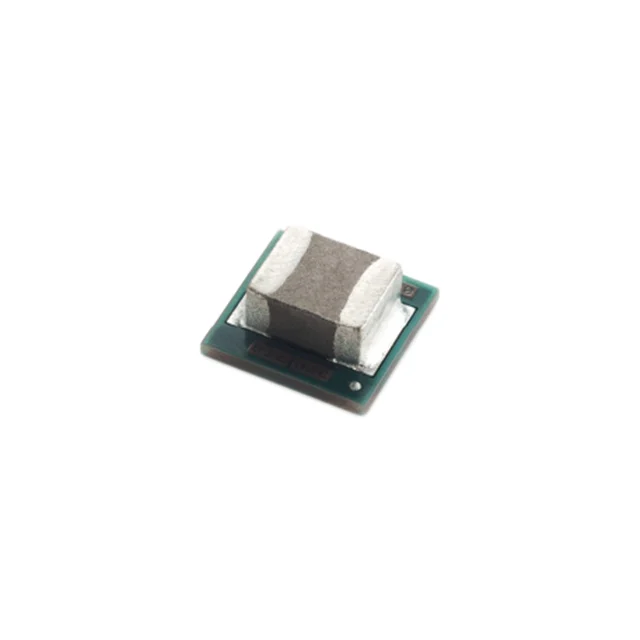

TPS82130SILR MicroSiP™ Power Module
The TPS82130SILR is a highly integrated 3A synchronous step-down DC/DC power module from Texas Instruments, designed for space-constrained applications requiring minimal external components. Housed in an ultra-compact 3.0mm x 2.8mm x 1.5mm MicroSiP (SIL-8) package, it uniquely integrates the power inductor, MOSFETs, and controller into a single chip-scale module, achieving a complete buck converter solution with only input and output capacitors. Operating from a wide 3V to 17V input range and delivering an adjustable output from 0.9V to 6V, it leverages DCS-Control™ topology with a 2MHz switching frequency and Power Save Mode (PSM) to maintain high efficiency across load conditions while drawing only 20µA quiescent current.
TPS82130SILR DC/DC Converter module Applications
● Industrial & Automation Systems
● Networking & Telecom Equipment
● Solid-State Drives (SSD) & Storage
● Portable & Battery-Powered Devices
Alternative Power Module Models
1. TPS82130SILT (Texas Instruments): A direct pin-compatible variant in a different reel packaging option, offering identical electrical specifications for alternative sourcing.
2. TPSM82903 (Texas Instruments): A next-generation 3A MicroSiP module with enhanced performance metrics, serving as a recommended upgrade path for new designs.
3. LTM4620 (Analog Devices): A 4A µModule step-down regulator in a slightly larger BGA package, providing higher current density for more demanding power requirements.
4. MPM54304 (Monolithic Power Systems): A 3A, 18V input power module with similar integration levels and a compact QFN package, suitable as a second-source alternative.
