In the field of electronic device communication, line drivers/receivers play a crucial role by ensuring stable and accurate data transmission between different devices. The MAX3223E series by Maxim Integrated, as a top-tier RS-232 transceiver, holds an important position in various application scenarios due to its outstanding performance and features.

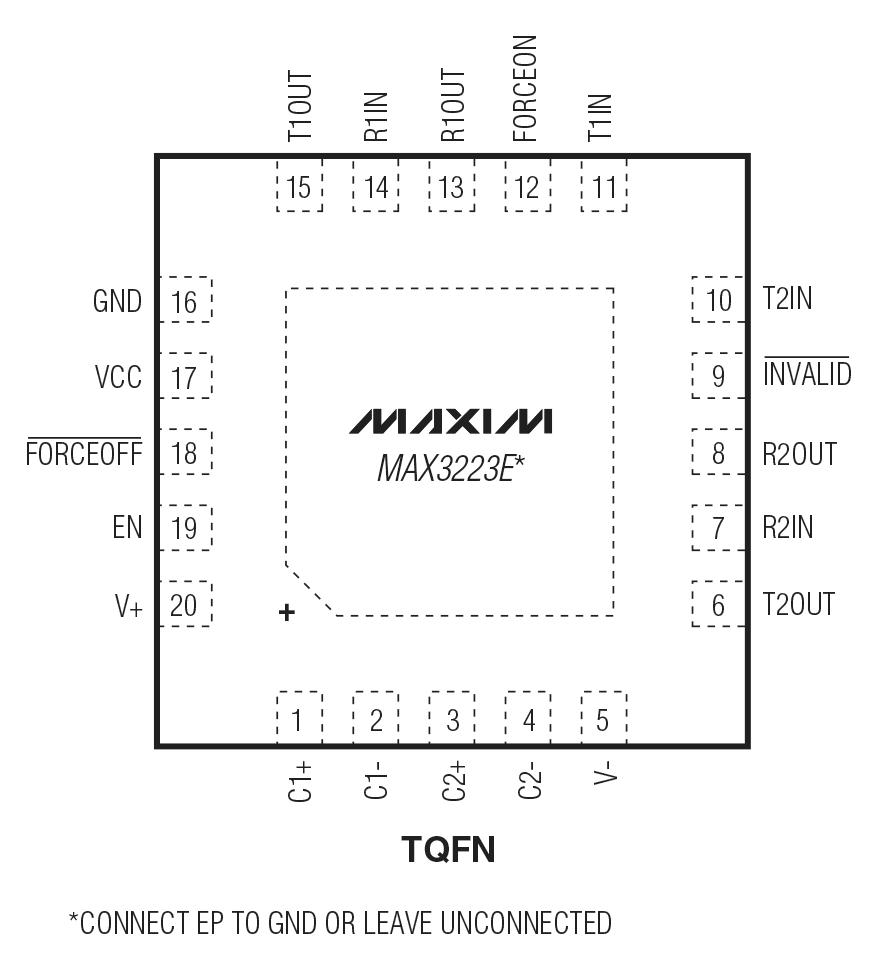

MAX3223E Series Overview

The MAX3223E series is a multi-channel RS-232 line driver/receiver introduced by Maxim Integrated, designed specifically for power systems ranging from 3V to 5.5V. This series integrates two line drivers, two line receivers, and a dual charge pump circuit, supporting a data transmission rate of up to 500 kbit/s and featuring ±15kV ESD protection capabilities. It complies with the TIA/EIA-232-F and ITU v.28 standards. The MAX3223E series is widely used in various communication devices due to its excellent ESD protection, low power consumption, and stable data transmission rate.

1. Working Principle

The MAX3223E series integrates two line drivers, two line receivers, and a dual charge pump circuit. The charge pump, together with four small external capacitors, works in conjunction to support single-supply operation from 3V to 5.5V. This establishes a reliable electrical interface between the asynchronous communication controller and the serial port connector, enabling bidirectional data transmission.

In simpler terms, the MAX3223E converts the single supply voltage into the positive and negative voltages required by the RS-232 interface through the charge pump circuit, thus achieving compatibility with the RS-232 voltage levels. Its auto-shutdown feature further reduces power consumption by controlling the activation and deactivation of the driver based on the validity of the receiver input signals.

2. Key Features

● Robust ESD Protection: This series provides comprehensive ESD protection for RS-232 bus pins, withstanding ±15kV Human Body Model (HBM), ±8kV IEC61000-4-2 contact discharge, and ±15kV IEC61000-4-2 air discharge. This effectively prevents device damage from static electricity, significantly enhancing product reliability and stability.

● Wide Voltage Range and High-Speed Transmission: It operates stably at supply voltages ranging from 3V to 5.5V, with a data transmission rate of up to 500 kbit/s. This meets the data transmission requirements of various devices with different voltage needs while ensuring high-speed data transfer efficiency.

● Low Power Consumption: It features low standby current, with a typical value of only 1µA. When the serial port is inactive, the auto-shutdown function further reduces power consumption, saving energy and extending the battery life of battery-powered devices.

● Multiple Driver and Receiver Configuration: With two drivers and two receivers, this configuration is suitable for various complex communication scenarios, enabling the simultaneous handling of multiple data transmission tasks.

3. Significance

In today's digital age, communication between devices has become increasingly frequent and important. The MAX3223E series ensures reliable data transmission between different devices, providing a solid foundation for the stable operation of various systems in fields such as industrial control, communication equipment, and consumer electronics.

Key Models of the MAX3223E Series

Applications of the MAX3223E Series

The MAX3223E series is widely used in the following fields due to its excellent performance and features:

● Battery-Powered Systems: Such as PDAs, laptops, portable computers, handheld devices, etc. Its low-power characteristics and wide voltage range make it ideal for battery-powered applications, ensuring normal device operation and extended battery life.

● Industrial Control: In industrial automation equipment, reliable data transmission is essential for communication and control between devices. The MAX3223E series' high reliability and anti-interference capabilities meet the strict requirements for stable data transmission in industrial environments.

● Communication Equipment: In various communication devices, such as modems and routers, this series ensures accurate data transmission between different devices, guaranteeing smooth communication.

Alternative Series/Models

There are also several alternative products on the market that can replace the MAX3223E series. However, different alternative models may vary in specific parameters and features, and a detailed comparison and evaluation should be

Precautions

When using the MAX3223E series products, the following points should be noted:

● External Capacitor Selection: These products require four small external capacitors to support their operation. The capacitance values and types should be selected strictly according to the data manual to ensure the normal operation of the charge pump and the stability of the entire system.

● Power Management Settings: Properly configure power management functions such as auto-shutdown. Adjust the voltage levels of pins like FORCEON and FORCEOFF based on the actual application scenario to achieve optimal power management while avoiding abnormal device operation due to improper settings.

● ESD Protection Measures: Although these products feature robust ESD protection capabilities, appropriate ESD protection measures should still be taken during device design and installation. Follow relevant ESD protection standards to prevent damage from external static environments.
