IAM-20680
| Parameters | |
|---|---|
| Mfr | TDK InvenSense |
| Type | 6-Axis |
| Qualification | AEC-Q100 |
| Package | LGA-16 |
| Operating Temperature | -40°C to +85°C |
| Supply Voltage | 1.71V to 3.6V |
| Operating Current-Max | 3 mA |
| Resolution | 16-bit ADC |
| Interface | I²C & SPI (up to 10MHz) |
IAM-20680 InvenSense Automotive 6-Axis MEMS IMU

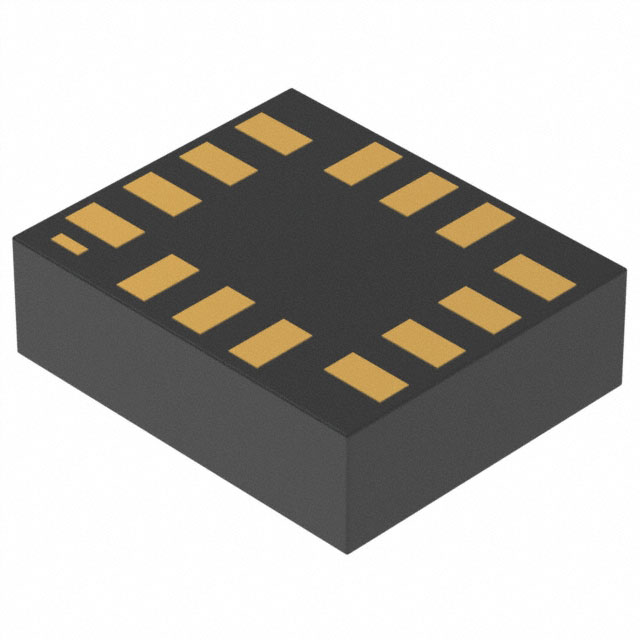

IAM-20680 is an AEC-Q100 Grade 2 qualified automotive-grade 6-axis inertial measurement unit from TDK InvenSense, integrating a 3-axis MEMS gyroscope and 3-axis MEMS accelerometer inside a miniature 3×3×0.75mm 16-pin LGA thin surface-mount package shipped on standard tape reel, fully RoHS compliant and MSL1 rated for stable mass SMT assembly. It operates with independent analog VDD and digital VDDIO rails spanning 1.71V to 3.6V, supporting -40°C to +85°C automotive ambient temperature, pre-factory calibrated sensitivity to cut production line tuning workload, and built-in 16-bit high-resolution ADCs for precise motion digitization, engineered to deliver reliable motion tracking under vehicle vibration, thermal fluctuation and electrical noise interference conditions.
It serves as core motion sensing hardware widely used for automotive rearview camera stabilization, steering angle auxiliary tracking, seat position monitoring, vehicle tilt detection, aftermarket dashcam stabilization systems, industrial heavy machinery tilt monitoring and rugged portable inspection equipment, delivering accurate orientation and acceleration data for safety and stabilization functions in cost-sensitive automotive and industrial motion control designs.
Alternative 6-axis IMUs
● IAM-20688 (TDK InvenSense): Pin-compatible automotive IMU with identical LGA-16 footprint and upgraded noise performance for direct PCB drop-in replacement during stock shortages.
● BMI160 (Bosch Sensortec): AEC-Q100 qualified 6-axis automotive IMU with matching package size and dual I2C/SPI interfaces as mature cross-brand second-source substitute.
● LSM6DSO32X (STMicroelectronics): High-stability automotive 6-axis inertial sensor with extended temperature range and embedded machine learning core for premium vehicle motion systems.
