MPU-6000

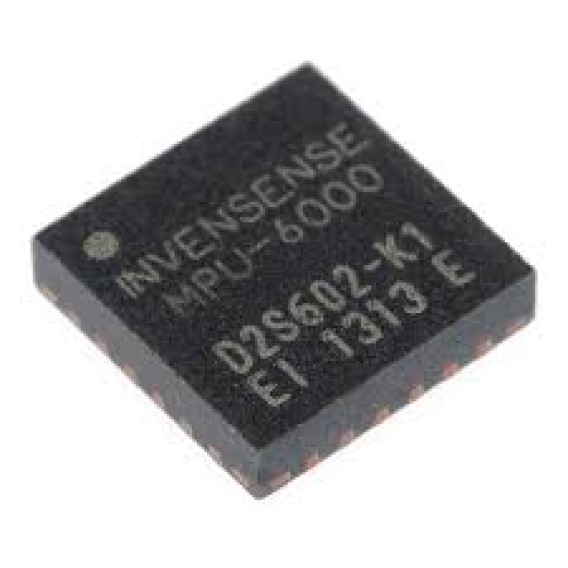

MPU-6000 TDK InvenSense Industrial 6-Axis MEMS IMU

MPU-6000 is a high-stability industrial 6-axis inertial measurement unit from InvenSense (now TDK), integrating a 3-axis MEMS gyroscope and 3-axis accelerometer inside a 4×4mm 24-pin QFN surface-mount package with tape-and-reel packaging, fully RoHS compliant and MSL1 rated for reliable mass SMT assembly. It operates on a tight 2.375V to 3.46V supply rail with nominal 2.5V VDD, supporting industrial temperature range of -40°C to +85°C, and delivers 16-bit high-resolution ADC conversion for both gyro and acceleration signals. Distinguished from consumer-grade MPU-6050 by robust mechanical shock resistance, superior vibration rejection and dedicated high-speed SPI interface prioritized for high-precision navigation and industrial attitude control systems, with factory trimmed sensor offsets to reduce calibration workload on production lines.

It functions as a core precision motion sensor widely deployed in UAV drone flight control systems, autonomous vehicle INS/GNSS navigation units, industrial robotic arm stabilization, construction machinery tilt monitoring, high-end gimbal stabilization platforms, marine vessel attitude tracking and surveying instrumentation, serving scenarios requiring long-term stable inertial data far beyond typical consumer wearable and gaming hardware requirements.

Alternative 6-axis industrial IMUs

● MPU-6050 (TDK InvenSense): Pin-compatible consumer 6-axis IMU with identical measurement ranges but lower vibration immunity for cost-sensitive low-precision projects.

● BMI088 (Bosch Sensortec): High-performance industrial 6-axis IMU with ultra-low gyro noise, available in compact QFN packaging as cross-brand second-source replacement.

● LSM6DSOX (STMicroelectronics): Industrial-qualified inertial sensor with embedded machine learning core for intelligent motion detection and navigation auxiliary tasks.
