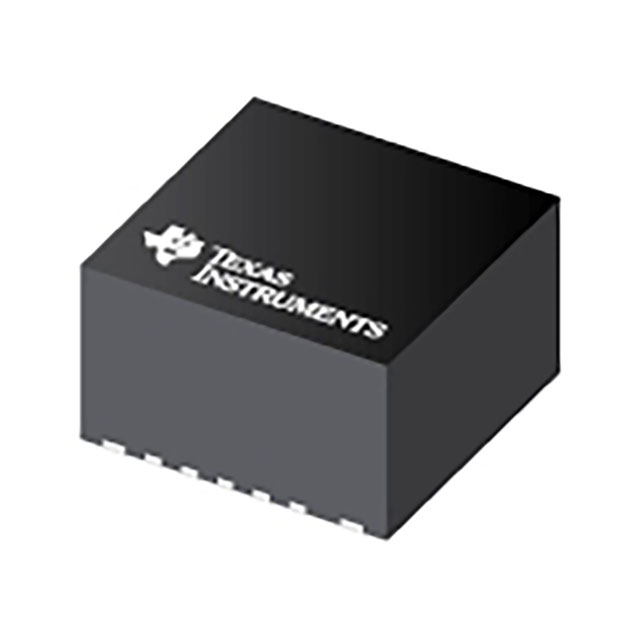

TPSM843321RCJR
| Parameters | |
|---|---|
| Type | Non‑Isolated PoL Module (DC‑DC Step‑Down Converter) |
| Mfr | Texas Instruments |
| Series | TPSM843321 |
| Input Voltage (Min) | 3.8 V |
| Input Voltage (Max) | 18 V |
| Output Voltage | 0.6 V to 12 V |
| Output Current (Max) (mA) | 3 A |
| Output Power-Max | 15 W |
| Switching Frequency | 200 kHz to 2.2 MHz |
| Quiescent Current | 28 µA (typical) |
| Topology | Synchronous Buck |
| Synchronous Rectifier | Yes |
| Package | 9‑QFN Module |
| Mounting Type | Surface Mount |
| Operating Temperature Range | –40°C to +125°C |
TPSM843321RCJR 30A synchronous power module
The TPSM843321RCJR is a high-performance, 30A synchronous step-down (buck) power module from Texas Instruments, designed for point-of-load (POL) regulation in high-current, space-constrained applications. This fully integrated module in a compact 9mm x 15mm BGA package includes the controller, power MOSFETs, inductor, and input/output capacitors, providing a complete power solution that simplifies design and reduces board area. It operates from a wide input voltage range of 4.5V to 16V and delivers a fixed 3.3V output, making it ideal for converting intermediate bus voltages in advanced computing and communication systems.
The TPSM843321RCJR is primarily targeted at powering high-performance processors, ASICs, FPGAs, and memory arrays in data center servers, telecom infrastructure, and networking equipment. It is also well-suited for industrial automation systems and test/measurement instruments where high current, precise regulation, and a compact footprint are critical requirements.
Alternative buck power modules
1. LTM4644-I by Analog Devices: A 4A output, step-down µModule regulator with an input range up to 36V, offering high power density and paralleling capability for scalable current needs.
2. MAXM17572 by Analog Devices: A 3A, 36V input synchronous buck power module in a small 4mm x 4mm package, designed for harsh industrial environments.
3. MPM54304 by Monolithic Power Systems (MPS): A 4A, 36V input power module with integrated inductor and MOSFETs, providing a compact solution for industrial POL applications.
4. SIP32401DN by Vishay Siliconix: A 6A, 40V input buck regulator module in a SIP package, offering high efficiency and a wide operating temperature range.
