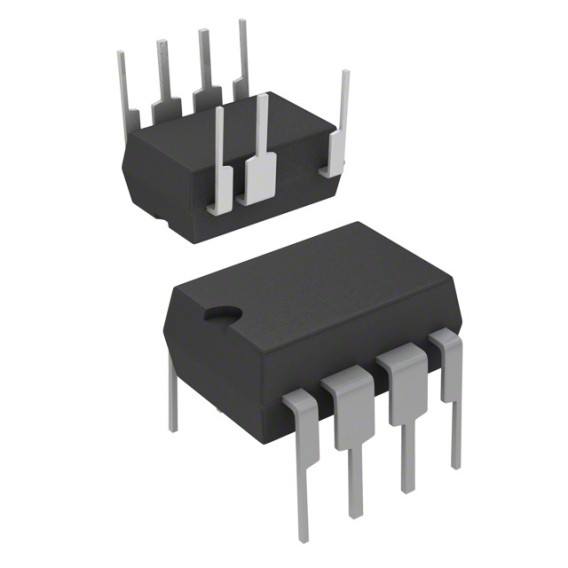

ICE5AR4780BZSXKLA1
| Parameters | |
|---|---|
| Series | CoolMOS™, CoolSET™ |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Mfr | Infineon Technologies |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Breakdown | 800V |
| Supplier Device Package | PG-DIP-7 |
| Power (Watts) | 15 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25.5V |
| Control Features | EN, Soft Start, Sync |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Start Up | 16 V |
| Duty Cycle | 75% |
| Output Isolation | Isolated |
| Package | Tube |
| Product Status | Active |
| Base Product Number | ICE5AR4780 |
| REACH Status | REACH Unaffected |
| Standard Package | 50 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
ICE5AR4780BZSXKLA1 Converter Offline Flyback Topology 100kHz PG-DIP-7
The ICE5AR4780BZSXKLA1 is a high-performance fixed-frequency flyback AC-DC converter and offline switcher developed by Infineon Technologies, belonging to the advanced CoolSET™ product family, housed in a 7-pin DSO surface-mount package with an exposed thermal pad to deliver efficient heat dissipation for continuous medium-power operation in cost-effective power supply designs.
This device integrates a 700V avalanche-rated power MOSFET, supports a 10V to 25.5V Vcc supply voltage range, operates at a fixed 65kHz switching frequency, and delivers a maximum 25W output power with a peak 92% full-load efficiency, featuring built-in enable control, soft start function and synchronization interface to simplify external circuit design and reduce overall BOM count. It integrates comprehensive fault protection mechanisms including cycle-by-cycle current limiting, open-loop detection, overload protection, over-temperature shutdown and over-voltage protection, and supports non-isolated output topologies, covering a full industrial-grade operating temperature range from -40°C to +150°C at the junction temperature. This component is fully RoHS compliant, widely deployed in consumer electronics chargers, LED driver power supplies, industrial automation auxiliary power modules and home appliance control boards, delivering high efficiency and long-term reliability for low-to-medium power offline power conversion applications.
Alternative Flyback Converters
● ICE5AR4780BZSXUMA1 from Infineon Technologies is a pin-compatible variant in the same CoolSET™ family, offering enhanced thermal performance for continuous 30W full-load operation under high ambient temperature conditions.
● ICE5AR4780BZ from Infineon Technologies is the standard production variant with identical core electrical specifications, providing supply chain redundancy for long-term industrial product designs.
● NCP1252BSN65T1G from ON Semiconductor is a 65kHz flyback AC-DC converter with integrated MOSFET, delivering comparable high-efficiency offline power conversion for low-cost 25W power supply designs.
● LNK626PG from Power Integrations is a highly integrated offline switcher with minimal external components, ideal for ultra-compact low-power charger and adapter applications.
