ICE5GR1680AGXUMA1
| Parameters | |
|---|---|
| Voltage - Breakdown | 800V |
| Supplier Device Package | PG-DSO-12-21 |
| Power (Watts) | 27 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25.5V |
| Control Features | EN, Soft Start, Sync |
| Frequency - Switching | 125kHz |
| Internal Switch(s) | Yes |
| Duty Cycle | 75% |
| Output Isolation | Non-Isolated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Base Product Number | ICE5GR1680 |
| REACH Status | REACH Unaffected |
| Standard Package | 2,500 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Series | CoolMOS™, CoolSET™ |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Mfr | Infineon Technologies |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |

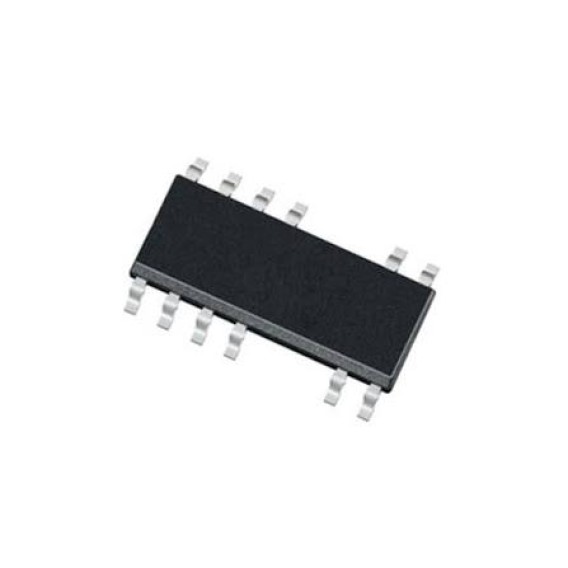

ICE5GR1680AGXUMA1 Converter Offline Flyback Topology 125kHz PG-DSO-12-21
ICE5GR1680AGXUMA1 is a high-performance fixed-frequency quasi-resonant flyback AC-DC converter and offline switcher developed by Infineon Technologies, belonging to the advanced CoolSET™ product family, housed in a 12-BSOP surface-mount package with an exposed thermal pad to deliver efficient heat dissipation for continuous medium-power operation in cost-effective power supply designs.
This device integrates a 700V avalanche-rated power MOSFET, supports a 10V to 25.5V Vcc supply voltage range, operates at a fixed 65kHz switching frequency, and delivers a maximum 25W output power with a peak 92% full-load efficiency, featuring built-in enable control, soft start function and synchronization interface to simplify external circuit design and reduce overall BOM count. It integrates comprehensive fault protection mechanisms including cycle-by-cycle current limiting, open-loop detection, overload protection, over-temperature shutdown and over-voltage protection, and supports non-isolated output topologies, covering a full industrial-grade operating temperature range from -40°C to +150°C at the junction temperature. This component is fully RoHS compliant, widely deployed in consumer electronics chargers, LED driver power supplies, industrial automation auxiliary power modules and home appliance control boards, delivering high efficiency and long-term reliability for low-to-medium power offline power conversion applications.
Alternative Models
● ICE5GR1680AGXKLA1 from Infineon Technologies is a pin-compatible variant in the same CoolSET™ family, offering enhanced thermal performance for continuous 30W full-load operation under high ambient temperature conditions.
● ICE5GR1680AG from Infineon Technologies is the standard production variant with identical core electrical specifications, providing supply chain redundancy for long-term industrial product designs.
● NCP1342BMN065R2G from ON Semiconductor is a 65kHz quasi-resonant flyback controller with integrated 700V MOSFET, delivering comparable high-efficiency offline power conversion for low-cost 25W power supply designs.
● LNK626PG from Power Integrations is a highly integrated offline switcher with minimal external components, ideal for ultra-compact low-power charger and adapter applications.
