Texas Instruments (TI) has recently announced the launch of the world's smallest microcontroller unit (MCU) — the MSPM0C1104. This MCU, with its ultra-miniature 1.6mm × 1.6mm package and ultra-low-power design, has once again redefined the industry's perception of miniaturized embedded systems. It is 38% smaller than the smallest comparable products currently on the market. As the latest addition to the Arm Cortex-M0+ architecture, the MSPM0C1104 not only sets a new record for MCU size but also expands TI's Arm Cortex-M0+ MSPM0 MCU portfolio.

Core Product Parameters: Small Size, Big Power

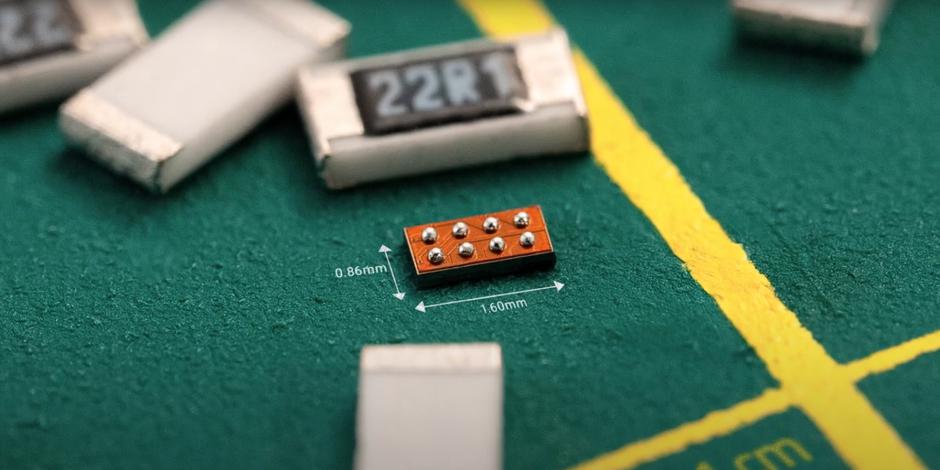

Despite its minuscule size, the MSPM0C1104 boasts powerful functionality and performance. Utilizing BGA-20L packaging technology, the chip occupies only 1.38 square millimeters, a 40% reduction from its predecessor, making it the smallest commercially available MCU globally. This breakthrough enables designers to achieve higher integration in space-constrained applications such as miniature sensors, wearable devices, and medical implants.

Based on the Arm Cortex-M0+ core, the MSPM0C1104 supports single-cycle instruction execution, offering more than five times the computational efficiency of traditional 8-bit MCUs. Additionally, its dynamic power consumption is as low as 0.9μA/MHz, allowing for battery life spanning several years in standby mode, perfectly meeting the low-power requirements of Internet of Things (IoT) devices.

The MSPM0C1104 integrates 16KB of memory, a three-channel 12-bit analog-to-digital converter (ADC), six general-purpose input/output pins, and supports standard communication interfaces such as UART, SPI, and I²C. These features enable the MCU to optimize circuit board space while maintaining high performance. Moreover, the MSPM0C1104 demonstrates excellent environmental adaptability, operating stably within an extreme temperature range of -40°C to 125°C. In terms of power consumption, it achieves 87μA/MHz in active mode and 5μA in standby mode, with support for SRAM data retention.

Technological Innovation: Redefining the Limits of Miniaturization

1. Chiplet Stacking Technology

 For the first time in its MCU lineup, TI has adopted a 3D vertical stacking process, integrating the processor core, memory units, and I/O interfaces into multiple layers of silicon. This not only reduces chip area but also enhances signal transmission speed. Tests have shown that this technology increases data throughput by 30% while reducing electromagnetic interference (EMI) by 20%.

2. Adaptive Voltage Scaling (AVS)

 The built-in dynamic voltage management system can seamlessly switch between 0.9V and 3.3V based on load requirements. Combined with clock frequency division technology, it optimizes overall energy efficiency to 98%, significantly surpassing industry averages.

3. Security Encryption Engine

 The MSPM0C1104 integrates hardware-level AES-256 encryption algorithms and a True Random Number Generator (TRNG), meeting the stringent data privacy and security requirements of IoT devices, especially in high-security scenarios such as smart homes and industrial control.

Applications: From Wearable Devices to Industrial Automation

The ultra-small size of the MSPM0C1104 makes it an ideal choice for applications with stringent space requirements, such as medical wearables, personal electronics, wireless earbuds, and medical probes. Vinay Agarwal, Vice President and General Manager of MSP Microcontrollers at TI, said, "In miniature systems like earbuds and medical probes, circuit board space is a scarce and valuable resource. The launch of the MSPM0C1104 offers endless possibilities for smart, interconnected experiences in everyday life."

● Wearable and Health Monitoring Devices: Its small size and low power consumption make it perfect for smartwatches, fitness trackers, and implantable medical devices (such as glucose sensors). For example, a single MSPM0C1104 chip can drive a miniature ECG sensor to perform real-time heart rate monitoring and transmit data wirelessly.

● Environmental Sensing Networks: By integrating high-precision ADCs and temperature/humidity sensor interfaces, the MCU can be deployed in miniaturized environmental sensor nodes for applications such as smart home temperature control, industrial equipment condition monitoring, and agricultural soil moisture analysis.

● Industrial Automation and Edge Computing: In Industry 4.0 scenarios, the MSPM0C1104 can work with PLCs via CAN FD buses to enable high-speed data exchange between devices. Its low-latency processing capabilities also support lightweight machine learning algorithms for real-time fault prediction.

Ecosystem and Developer-Friendly Toolchain

TI has also launched the MSPM0 LaunchPad development kit and the Code Composer Studio integrated development environment (IDE) to provide comprehensive hardware debugging and software programming support. This helps engineers quickly configure, develop, and run microcontroller applications without the need for extensive coding. Furthermore, TI has announced the opening of the MSPM0C1104's GPIO, PWM, and UART interfaces to encourage third-party vendors to develop customized solutions and expand the ecosystem.

Industry Impact and Significance

The introduction of the MSPM0C1104 addresses the challenge of the slowing Moore's Law in the semiconductor industry by redefining the physical limits of MCUs through innovative processes. According to market research firm Yole Développement, the global market for miniature MCUs is expected to exceed $8 billion by 2027. With this technological breakthrough, TI is poised to further consolidate its approximately 37% share in the 32-bit MCU market.

The launch of the MSPM0C1104 MCU is both a milestone in semiconductor process evolution and an inevitable outcome of the miniaturization trend in the IoT era. As 5G and AIoT technologies converge, smaller, smarter, and more secure MCUs will become the brains of intelligent terminals. TI's innovation may be paving the way for the next era of interconnected devices.
