As automotive electrical/electronic architectures accelerate their evolution from distributed systems to domain controllers and central computing platforms, the reliability boundary of the entire vehicle has shifted comprehensively from individual chip performance toward system-level hardware robustness. Within the rigorous framework of the AEC-Q series standards, components are no longer merely independent functional carriers but foundational elements for building safety defenses. This article provides an in-depth breakdown of the automotive-grade component inventory, offering practical, implementation-ready guidance for hardware selection and system design.

I. AEC-Q200 Passive Component Matrix

Passive components are fundamental elements that operate without external power sources. In automotive environments, they must not only withstand extreme temperature variations (−40°C to +150°C) but also resist mechanical vibration and humid-heat aging. Under AEC-Q200 Rev.E, automotive-grade passive components are classified into nine categories, with the core requirement being zero-failure statistical confidence.

During the design phase, derating is critical for passive components. For example, MLCCs typically require a 50% voltage derating to avoid dielectric breakdown during cold cranking or load transients.

II. AEC-Q101 Discrete Semiconductors

When circuits require active power chopping, rectification, or switching control, the domain shifts to active components. AEC-Q101 targets discrete semiconductors, with emphasis on assessing physical reliability under high voltage and high current, particularly through avalanche energy (EAS) and thermal resistance (RθJC) testing.

● Power Switches: MOSFETs (including SiC/GaN wide-bandgap semiconductors), IGBTs. SiC MOSFETs have become the preferred choice for main-drive inverters due to their high-temperature tolerance and high-frequency characteristics; however, gate oxide reliability and threshold voltage drift remain key evaluation criteria.

● Protection Devices: TVS (Transient Voltage Suppression) Diodes. Positioned at the forefront of circuits, they absorb electrostatic discharge (ESD) and load dump surges, safeguarding downstream precision ICs.

● Rectification Devices: Schottky Diodes, Fast Recovery Diodes, used for freewheeling and polarity protection.

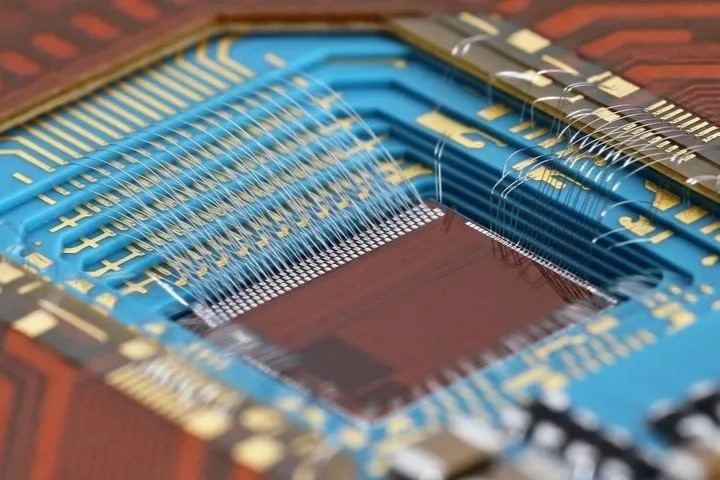

III. AEC-Q100 Automotive-Grade Control ICs

Competition in the AEC-Q100 automotive-grade control IC market is intense. AEC-Q100 classifies reliability thresholds based on temperature grades:

Grade 0 (−40°C to +150°C): Extreme high-temperature zones such as engine compartments and transmission control.

Grade 1 (−40°C to +125°C): The majority of application scenarios including cockpit electronics and ADAS domain controllers.

Grade 2/3 (−40°C to +105°C/85°C): Environmentally moderate zones such as body comfort systems.

IV. Specialized Standards and Multi-Chip Modules

As system complexity increases, single-chip standards can no longer cover all form factors:

● AEC-Q102 (Optoelectronic Semiconductors): Covers LEDs (adaptive headlights), LiDAR transmitter and receiver units. Key assessments include luminous flux degradation and high-temperature, high-humidity reverse bias (H3TRB).

● AEC-Q103 (MEMS Sensors): Targets accelerometers, gyroscopes, and pressure sensors. Additional specialized tests for mechanical shock and vibration are included to ensure long-term stability of sensing data.

● AEC-Q104 (Multi-Chip Modules): Targets SiP (System in Package). Since multiple process dies are integrated, the standard focuses on assessing delamination and coefficient of thermal expansion (CTE) matching—areas not covered by traditional single-chip standards.

V. System-Level Integration and Conclusion

In practical projects, the collaborative operation of devices under different standards is the norm. Taking BMS (Battery Management System) as an example:

● Physical Layer (Q200/Q101): Shunt resistors collect current, NTCs monitor temperature, and TVS provides surge protection.

● Logic Layer (Q100): AFE chips perform high-precision sampling, while MCUs execute control algorithms.

This hierarchical collaboration constitutes the underlying logic of automotive electronic hardware design—the parametric stability of the physical layer determines the decision-making ceiling of the logic layer.

In summary, building a hardware system that meets automotive-grade requirements is essentially about constructing a supply chain ecosystem compliant with the full spectrum of AEC-Q standards. From Q200 passive component selection, to Q101/Q100 active control, and onward to Q102/Q103/Q104 sensing and integration, every stage must undergo rigorous PPAP (Production Part Approval Process) verification to achieve the optimal balance among cost, performance, and longevity.
