In today's digital age, the Microcontroller Unit (MCU) has become an indispensable core component of modern electronic devices. From smart homes to industrial automation, from automotive electronics to medical devices, MCUs are ubiquitous. This article will delve into the basic concepts, working principles, major application scenarios, popular manufacturers and their product series, mcu selection guidelines, and the latest development trends of MCUs.

I. Basic Concepts and Working Principles of MCU

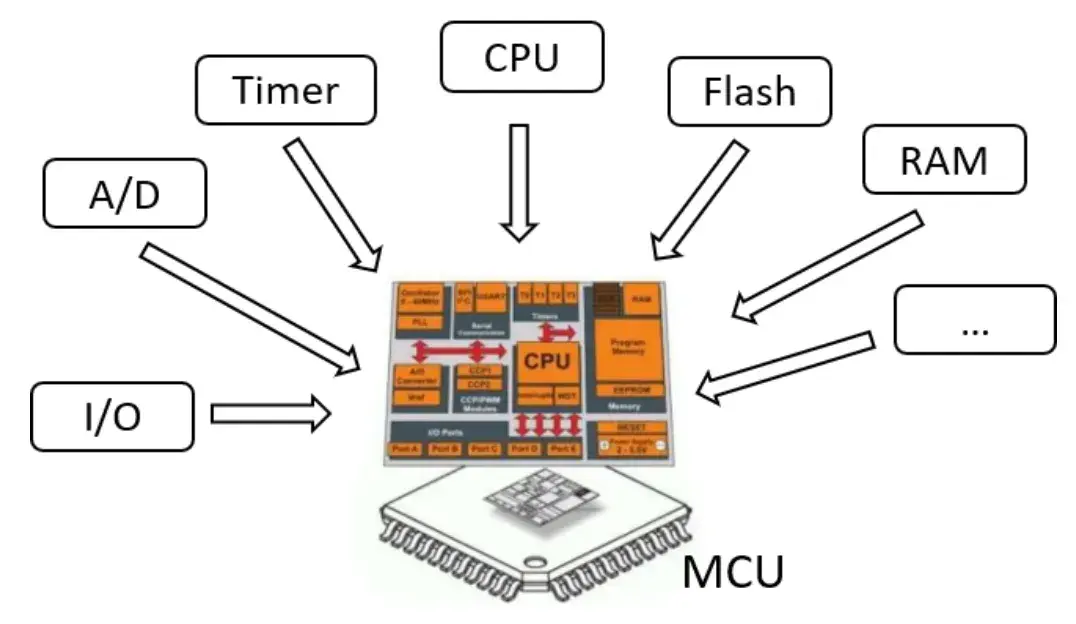

An MCU is a single-chip computer system that integrates a processor core (CPU), memory (ROM/RAM), input/output interfaces (I/O), and various peripherals (such as timers, ADCs, and communication modules). Its design goal is to efficiently execute specific tasks through a "System on Chip" (SoC) approach, making it suitable for resource-constrained environments that require real-time responsiveness. The typical architecture of an MCU includes the following components:

● CPU Core: Based on architectures such as ARM Cortex-M, RISC-V, or AVR.

● Memory: Flash (for program storage) and SRAM (for data storage).

● Peripheral Modules: GPIO, UART, SPI, I²C, PWM, ADC/DAC, etc.

● Power Management: Support for low-power modes (such as sleep and standby).

MCUs complete specific tasks by executing instruction sequences stored in program memory. These tasks may involve data reading and writing, arithmetic operations, logical judgments, and control of external devices. The working process of an MCU can be divided into the following steps:

1. Program Loading: After power-on, the MCU loads the program code from ROM.

2. Instruction Execution: The CPU executes the instructions one by one, processing data and controlling devices.

3. Data Processing: Data is temporarily stored in internal memory and read from sensors via peripheral interfaces.

4. Feedback and Control: Based on the processing results, the MCU outputs signals through GPIO to control actuators or interacts with other systems via communication interfaces.

II. Major Application Scenarios of MCU

Due to their small size, low power consumption, low cost, and ease of integration and development, MCUs are widely used in the fields of IoT, industrial automation, automotive electronics, medical devices, and more.

III. Popular MCU Manufacturers and Series/Models

There are many well-known MCU manufacturers globally, offering a wide range of product series to meet the needs of various application scenarios. Here are some popular manufacturers and their MCU series:

Selection Summary:

● High Performance: STM32H7, NXP LPC55S6x.

● Ultra-low Power: TI MSP430, STM32L5.

● Wireless Connectivity: ESP32-C6, Nordic nRF5340.

● High Security: Renesas RA6M5 (supports Secure Boot), NXP LPC55Sxx (with Physical Unclonable Function PUF).

 IV. MCU Selection Guidelines and Usage Considerations

1. Key Parameters for Selection:

◆ Core Performance: Choose the clock frequency (e.g., 80MHz vs. 400MHz) and architecture (e.g., Cortex-M0+ vs. M7) based on task complexity.

◆ Memory Capacity: Allocate 20% extra space for Flash (program space) and SRAM (runtime data).

◆ Peripheral Requirements: Determine if specific interfaces like CAN FD, USB OTG, or high-speed ADC are needed.

◆ Power Modes: Pay attention to current consumption in active and sleep modes (e.g., STM32U5's sleep mode consumes only 0.8μA).

◆ Development Support: Check if the manufacturer provides an IDE (e.g., STM32CubeIDE), software libraries (HAL/LL), and community resources.

2. Usage Considerations:

■ Power Design: Avoid voltage fluctuations; recommend using LDO or DC-DC regulators.

■ EMC Issues: Shield and filter high-frequency signals to prevent electromagnetic interference.

■ Firmware Upgrade: Reserve a Bootloader interface to support OTA (Over-the-Air) updates.

■ Security Protection: Enable hardware encryption modules (e.g., AES-256) and tamper detection.

 V. MCU Tech Latest Trends

With continuous technological advancements, MCUs are also evolving rapidly. Here are some recent popular trends in MCU technology:

1. The open-source RISC-V architecture, known for its flexibility and low cost, is rapidly penetrating the MCU market. For example, the GD32V series (from GigaDevice) is the first RISC-V core MCU with a clock frequency of 108MHz; and the high-performance multi-core RISC-V MCU, SiFive P550.

2. MCUs are beginning to integrate dedicated NPUs (Neural Processing Units) to support TinyML (Tiny Machine Learning). ST's STM32N6 features an AI accelerator that can run lightweight CNN models.

3. Upgrades in low-power technology. New MCUs, such as TI MSP430FR5994, can directly harvest energy from light, heat, or vibration.

4. Wireless integration and enhanced security. Multi-protocol wireless MCUs, such as ESP32-H2 (Wi-Fi + BLE 5.2 + Zigbee 3.0); and hardware-level secure MCUs, like STM32U5, which is PSA Certified and designed to resist side-channel attacks.

In summary, as the core engine of intelligent devices, MCUs are evolving from single-function control units to intelligent platforms that integrate AI, high integration, and functional safety. Whether it is the real-time control requirements of Industry 4.0 or the personalized experience of consumer electronics, MCU innovations continue to push the boundaries of technology. In the future, with the maturation of the RISC-V ecosystem and the popularization of edge AI, MCUs will unleash their potential in more fields, becoming the core carrier of the Internet of Things. For developers, keeping up with technological trends and making reasonable selections will be the key to successful design.
