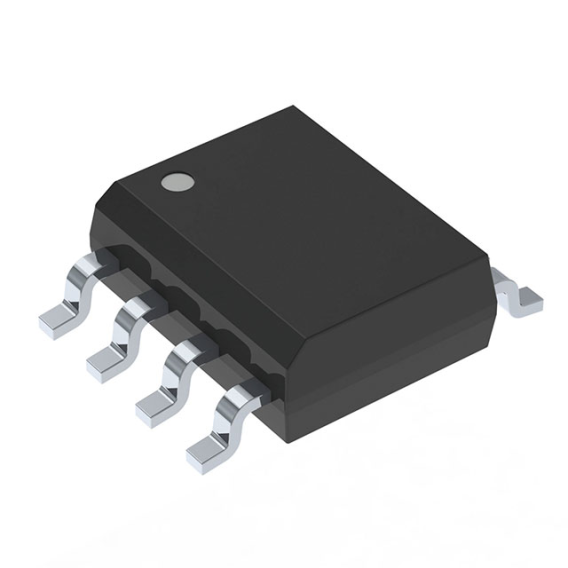

Infineon Technologies IRF7204TRPBF
| Parameters | |
|---|---|
| Mounting Type | SMD/SMT |
| Operating Temperature | -55°C to +175°C |
| Technology | Silicon MOSFET |
| Continuous Drain Current (ID) | 37A (at 25°C) |
| Package | 8-SOIC |
| Power Dissipation | 48W (at 25°C) |
| Compliance | RoHS Compliant |
| Mfr | Infineon Technologies |
IRF7204TRPBF - N-Channel Power MOSFET Datasheet and Product Details
The IRF7204TRPBF is a high-performance N-channel power MOSFET designed by Infineon Technologies, offering efficient power management solutions for a wide range of applications. This MOSFET features a low on-resistance (RDS(on)), fast switching capabilities, and robust thermal performance, making it ideal for power supply circuits, motor control, DC-DC converters, and other high-efficiency switching applications. With a compact DPAK (TO-252) package, it ensures excellent power dissipation while maintaining a small footprint on PCBs.
Synchronous rectification MOSFET Key Features
The IRF7204TRPBF operates with a drain-source voltage (VDS) of 40V and a continuous drain current (ID) of 44A, providing reliable power handling in demanding environments. Its ultra-low RDS(on) of 8.0mΩ (at VGS = 10V) minimizes conduction losses, enhancing energy efficiency. The device supports a gate-source voltage (VGS) range of ±20V, ensuring compatibility with various driving circuits. Additionally, its fast switching speed and low gate charge (Qg) contribute to reduced switching losses, improving overall system performance.
Infineon power MOSFETApplications
This MOSFET is widely used in power management applications, including synchronous rectification in SMPS (Switched-Mode Power Supplies), motor drives, battery protection circuits, and load switching systems. Its high current capability and thermal stability make it suitable for automotive electronics, industrial automation, and consumer electronics where efficient power conversion and heat dissipation are critical. The IRF7204TRPBF is also commonly employed in OR-ing applications, power distribution systems, and high-frequency switching circuits.
Reliability and Compliance
Infineon Technologies ensures high manufacturing standards for the IRF7204TRPBF, with rigorous testing for performance, durability, and environmental resilience. The MOSFET is RoHS compliant, adhering to global environmental regulations. It also meets industry standards for electrostatic discharge (ESD) protection, ensuring robustness in real-world operating conditions. Engineers can rely on its long-term stability and consistent performance in both commercial and industrial applications.
Low RDS(on) MOSFET Alternative Models
For design flexibility, consider these alternative MOSFETs with similar or enhanced characteristics: • IRF3205PbF – 55V, 110A, 8.0mΩ RDS(on), TO-220 package, high-current handling. • IRL40B209 – 40V, 80A, 4.5mΩ RDS(on), TO-263 package, ultra-low resistance. • IRF3708PBF – 30V, 62A, 6.5mΩ RDS(on), DPAK package, optimized for high-efficiency switching. • AUIRF7739L2 – 40V, 100A, 2.3mΩ RDS(on), PQFN package, advanced thermal performance.
