GD25Q128ESIGR
| Parameters | |
|---|---|
| Series | - |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Mfr | GigaDevice Semiconductor (HK) Limited |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Technology | FLASH - NOR |
| Supplier Device Package | 8-SOP |
| Access Time | 7 ns |
| Memory Size | 128Mbit |
| Memory Type | Non-Volatile |
| Voltage - Supply | 2.7V ~ 3.6V |
| Clock Frequency | 133 MHz |
| Memory Organization | 16M x 8 |
| Memory Format | FLASH |
| Memory Interface | SPI - Quad I/O |
| Write Cycle Time - Word, Page | 70µs, 2.4ms |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Base Product Number | GD25Q128 |
| REACH Status | REACH Unaffected |
| Standard Package | 2,000 |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |

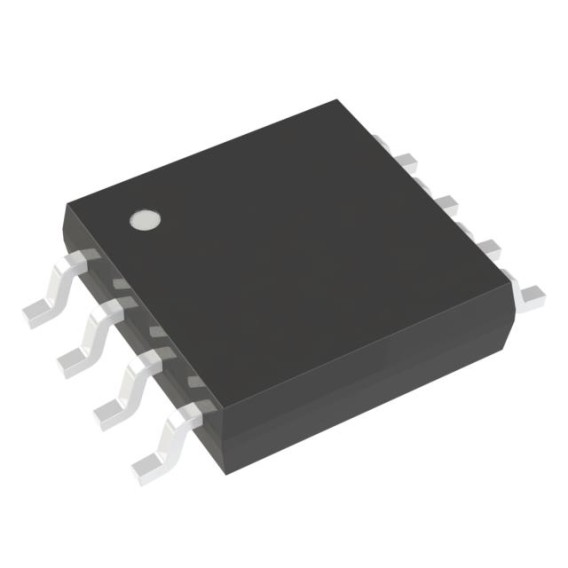

GD25Q128ESIGR FLASH-NOR Memory IC 128Mbit SPI-Quad I/O 133 MHz 7 ns
The GD25Q128ESIGR is a high-performance 128M-bit SPI NOR Flash memory chip from GigaDevice, designed for applications requiring fast read speeds, high reliability, and flexible interfacing. Operating on a single 2.7V to 3.6V power supply, it supports the standard Serial Peripheral Interface (SPI) with clock frequencies up to 133MHz, and achieves an impressive 532MHz (133MHz x 4) effective clock rate in Quad I/O (QIO) mode. This device features a uniform 4KB sector and 64KB block architecture, enabling efficient code execution in place (XIP) and offering a guaranteed endurance of 100,000 program/erase cycles per sector with data retention of up to 20 years. Its advanced design integrates security features and low-power modes, making it a versatile solution for a wide range of embedded systems.
This memory chip is organized as 16,777,216 bits (128M-bit), configured as 256 sectors of 4KB each or 2,048 blocks of 64KB each, providing flexible erase and programming granularity. It supports the complete SPI command set, including standard, Dual-Output, Dual-Input/Output (DIO), Quad-Output, and Quad-Input/Output (QIO) modes for maximum performance flexibility. Key electrical specifications include a typical active read current of 15mA (at 133MHz) and a deep power-down current of as low as 1µA, optimizing power consumption.
GD25Q128ESIGR Quad I/O memory Applications
● Embedded Systems & IoT Devices: Provides reliable, non-volatile storage for firmware, boot code, and application data in smart home devices, wearables, and industrial sensors.
● Automotive Electronics: Used for instrument clusters, infotainment systems, and ADAS modules, meeting requirements for extended temperature and data integrity.
● Consumer Electronics: Enables fast boot and system responsiveness in set-top boxes, routers, printers, and gaming peripherals.
● Communication Modules: Serves as program storage in Wi-Fi, Bluetooth, and cellular modules where fast code execution and low power are critical.
● Industrial Control: Stores configuration parameters and critical programs in PLCs, HMIs, and measurement equipment demanding high endurance and reliability.
Alternative SPI Flash Memory Models
1. Winbond W25Q128JVSIQ: A highly popular 128Mb NOR Flash offering excellent performance and reliability, widely used in consumer and industrial markets with robust security options.
2. Micron MT25QL128ABA1EW9-0SIT: Features a fast Quad I/O interface and enhanced high-performance mode, targeting automotive and industrial applications with stringent quality requirements.
3. Macronix MX25L12833FM2I-10G: Provides reliable 128Mb storage with a wide voltage range and deep power-down mode, suitable for power-sensitive and portable electronic devices.
4. Adesto/Infineon AT25SF128A: A flexible "Multi-I/O" Serial Flash supporting high-speed Dual and Quad Read commands, designed for space-constrained and performance-driven applications.
