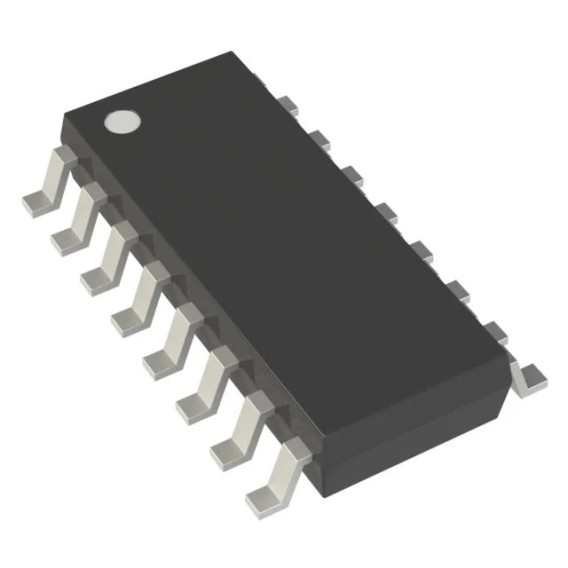

Vishay Siliconix DG413LEDY-T1-GE3
| Parameters | |
|---|---|
| Series | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Mfr | Vishay Siliconix |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 26Ohm |
| Supplier Device Package | 16-SOIC |
| -3db Bandwidth | - |
| Switch Circuit | SPST - NO/NC |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 6pF |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| Charge Injection | 6.6pC |
| Crosstalk | -114dB @ 1MHz |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Base Product Number | DG413 |
| Standard Package | 2,500 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Channel-to-Channel Matching (ΔRon) | - |
DG413LEDY-T1-GE3 Quad SPST Analog Switch 4 Circuit 1:1 26Ohm
The DG413LEDY-T1-GE3 from Vishay Siliconix is a precision quad, SPST (Single-Pole Single-Throw) analog switch designed for high-performance signal switching applications. Housed in a space-saving TSSOP-16 package, this IC is engineered to handle analog signals with exceptional accuracy and minimal distortion. It operates over a broad single-supply voltage range of +10V to +30V or dual supplies of ±4.5V to ±20V, making it a versatile solution for a wide array of industrial, communication, and test & measurement systems where signal integrity is paramount.
Key Features and Applications
This device boasts a low on-resistance (typically 35Ω) with an extremely flat response across the input signal range, ensuring minimal distortion of the switched audio or data signals. It features fast switching speeds (tON ~175ns, tOFF ~145ns) and very low charge injection, which is critical for maintaining precision in data acquisition systems and sample-and-hold circuits. The DG413LEDY-T1-GE3 also includes TTL/CMOS compatible logic inputs for easy interface with microcontrollers and digital processors, and offers a high degree of isolation between channels with a typical off-leakage current of just 100pA.
The primary application for this analog switch is in routing high-fidelity signals in professional audio equipment, automated test equipment (ATE), and precision data acquisition systems. Its robust design and wide voltage range make it suitable for industrial process control, avionics, and telecommunications infrastructure, including multiplexing and demultiplexing analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). It is an ideal choice for any design requiring the accurate, low-error switching of signals without compromising on speed or power consumption.
Alternative Analog Switch ic models
● ADG1414 (Analog Devices): A robust quad SPST switch offering ultralow on-resistance and charge injection for the most demanding precision applications.
● MAX14753 (Maxim Integrated/Texas Instruments): A fault-protected, quad SPST switch designed for high-reliability systems requiring overvoltage and overcurrent protection.
● TS5A23157 (Texas Instruments): A low-power, dual SPST analog switch optimized for portable audio and data interface applications with a wide voltage range.
● CD4066B (Texas Instruments): A classic, cost-effective quad bilateral switch ideal for general-purpose analog signal and digital switching in consumer applications.
