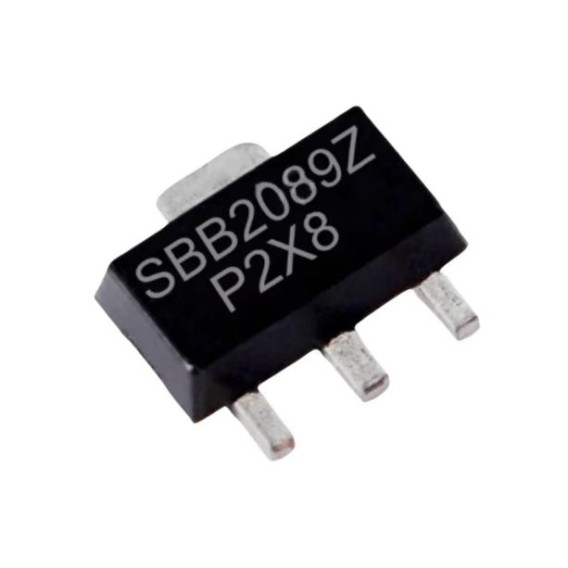

Qorvo SBB2089Z
| Parameters | |
|---|---|
| Packaging | MouseReel |
| Series | SBB2089Z |
| Operating Supply Voltage | 5 V |
| Package / Case | SOT-89-3 |
| Mfr | Qorvo |
| Operating Temperature | -40°C~+85°C |
| Operating Supply Current | 90 mA |
| Type | Mobile Amplifiers/Cellular Amplifiers |
| Gain | 20 dB |
| Mounting Style | SMD/SMT |
| Operating Frequency | 50 MHz to 850 MHz |
The SBB2089Z is a high performance InGaP HBT MMIC amplifier manufactured by Qorvo. The amplifier is designed for 5V gain module applications that require high linearity, small size and minimal external components. This amplifier supports a variety of cellular network standards, such as GSM, PCS, UMTS, etc., with broad band characteristics (up to 6 GHz). It can effectively amplify the RF signal to ensure the stability and strength of the signal during transmission. This amplifier supports a variety of cellular network standards, such as GSM, PCS, UMTS, etc., with broad band characteristics (up to 6 GHz). There are other products from Qorvo in the same series, SBB3089Z, SBB4089Z, SBB5089Z.
SBB2089Z Features:
50mhz to 850mhz operating frequency
High gain for excellent signal amplification; Low noise factor to ensure minimal noise interference
High output power to achieve efficient transmission of electrical energy
Operating temperature range :-40℃~ 85℃, suitable for various environmental conditions
Compact package :SOT-89-3 makes it easy to integrate into the design
SBB2089Z Application:
1. Communication field: In wireless communication systems, it is often used as a key component of the RF front end, which can effectively amplify the RF signal. It can also be used as a driver for power amplifiers (PA) to increase the output power, thereby improving the performance of the entire communication system. It is also widely used in cellular base stations and mobile devices.
2. Broadband applications: suitable for broadband communication systems, such as wireless local area network (WLAN), broadband wireless access (WiMAX), etc., and also suitable for signal generators, spectrum analyzers and other equipment to provide a stable RF signal source.
3. Military and Aerospace: Radar systems and aerospace communications, improving radar detection range and resolution, as well as ensuring the stability and reliability of communication signals.
4. Other applications: In microwave circuits, as a key part of amplifiers, filters, mixers and other components. In the industrial control system, it can be used for signal processing and transmission to improve the stability and accuracy of the control system.
