Qorvo SBB4089Z

Qorvo SBB4089Z Chip Introduction

The Qorvo SBB4089Z is a high-performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. This design provides stable current over temperature and process Beta variations, ensuring consistent performance across different operating conditions. The amplifier is designed to run directly from a 5V supply without requiring a dropping resistor, which is a common requirement for typical Darlington amplifiers. It is internally matched to 50 ohms and operates over a wide frequency range from 50 MHz to 6 GHz, making it suitable for a variety of high-frequency applications.

SBB4089Z Features

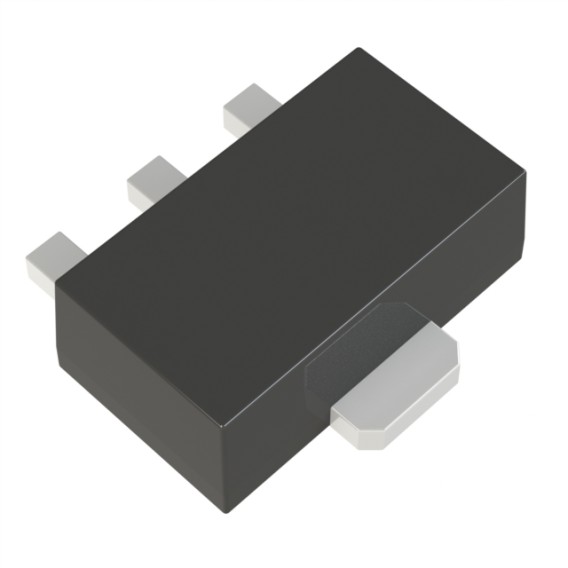

The SBB4089Z offers several key features that make it a robust choice for RF applications. It has a typical gain of 15 dB and an output power at 1 dB compression (P1dB) of 19.2 dBm. The amplifier also boasts a high third-order output intercept point (OIP3) of 35.2 dBm, which is crucial for maintaining signal integrity in high-linearity applications. Additionally, it features a low noise figure of 4.5 dB, ensuring minimal degradation of the signal-to-noise ratio. The SBB4089Z is packaged in a compact SOT-89 package, which is both space-efficient and thermally efficient. It also has a maximum operating current of 80 mA and a maximum operating supply voltage of 5.25 V.

SBB4089Z Applications

The SBB4089Z is designed for high linearity 5V gain block applications that require small size and minimal external components. It is particularly well-suited for use in network infrastructure applications such as point-to-point radio, wireless infrastructure base stations, and repeaters/boosters/distributed antenna systems. Its wide frequency range and high performance make it ideal for applications in cellular, PCS, GSM, and UMTS technologies. Additionally, it can be used in wideband instrumentation and wireless data systems, including satellite terminals.

Advantages of Choosing SBB4089Z

Selecting the SBB4089Z offers several advantages. Its active bias network ensures stable performance over varying temperatures and process variations, reducing the need for external biasing components. The ability to operate directly from a 5V supply without a dropping resistor simplifies the design and reduces power loss. The compact SOT-89 package makes it suitable for space-constrained applications while maintaining high thermal performance. Additionally, its high linearity and low noise figure make it an excellent choice for applications where signal integrity is critical. Overall, the SBB4089Z provides a reliable, high-performance solution for a wide range of RF applications.
